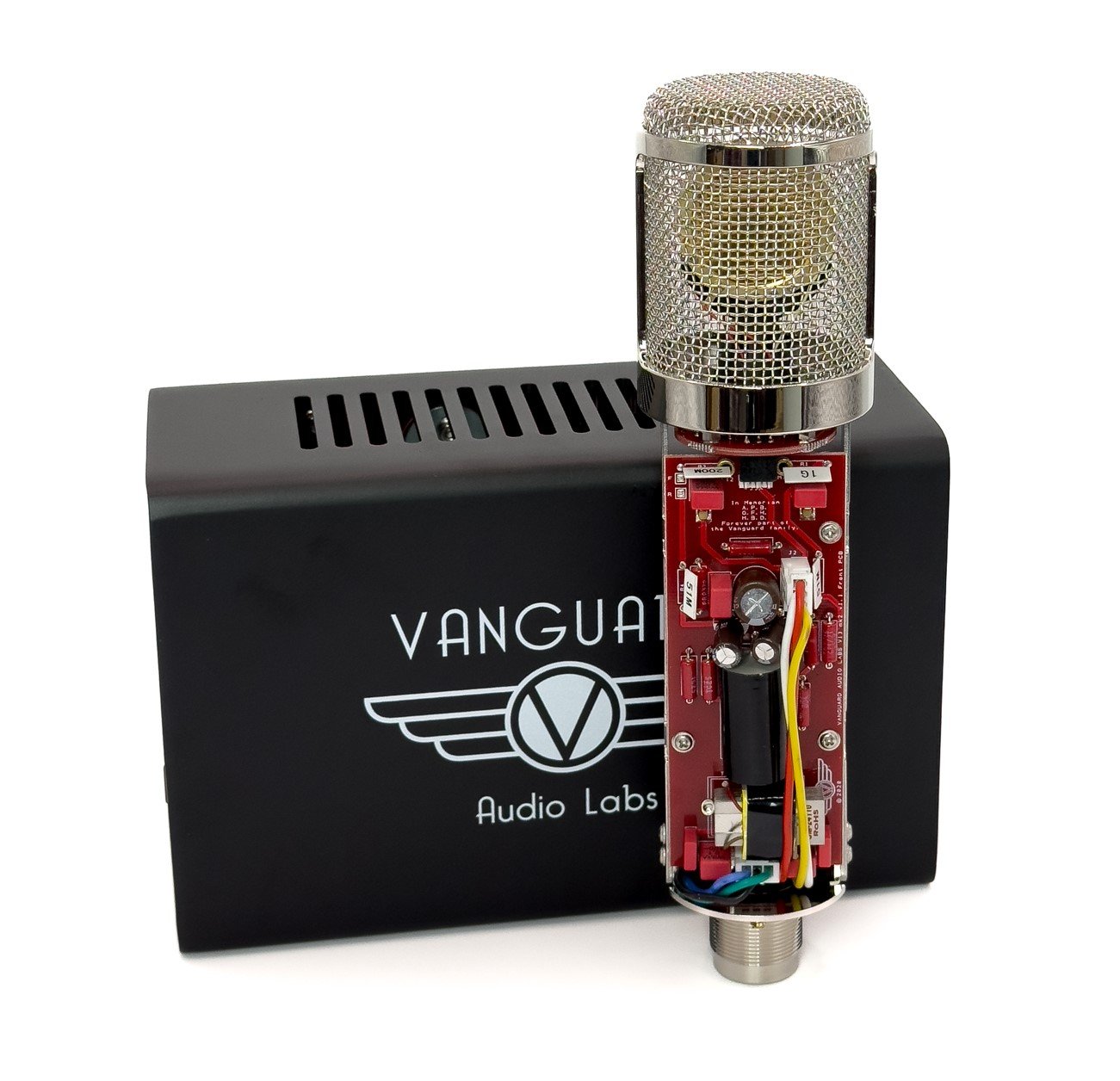

Sultry Vintage Tone in a Modern Classic!

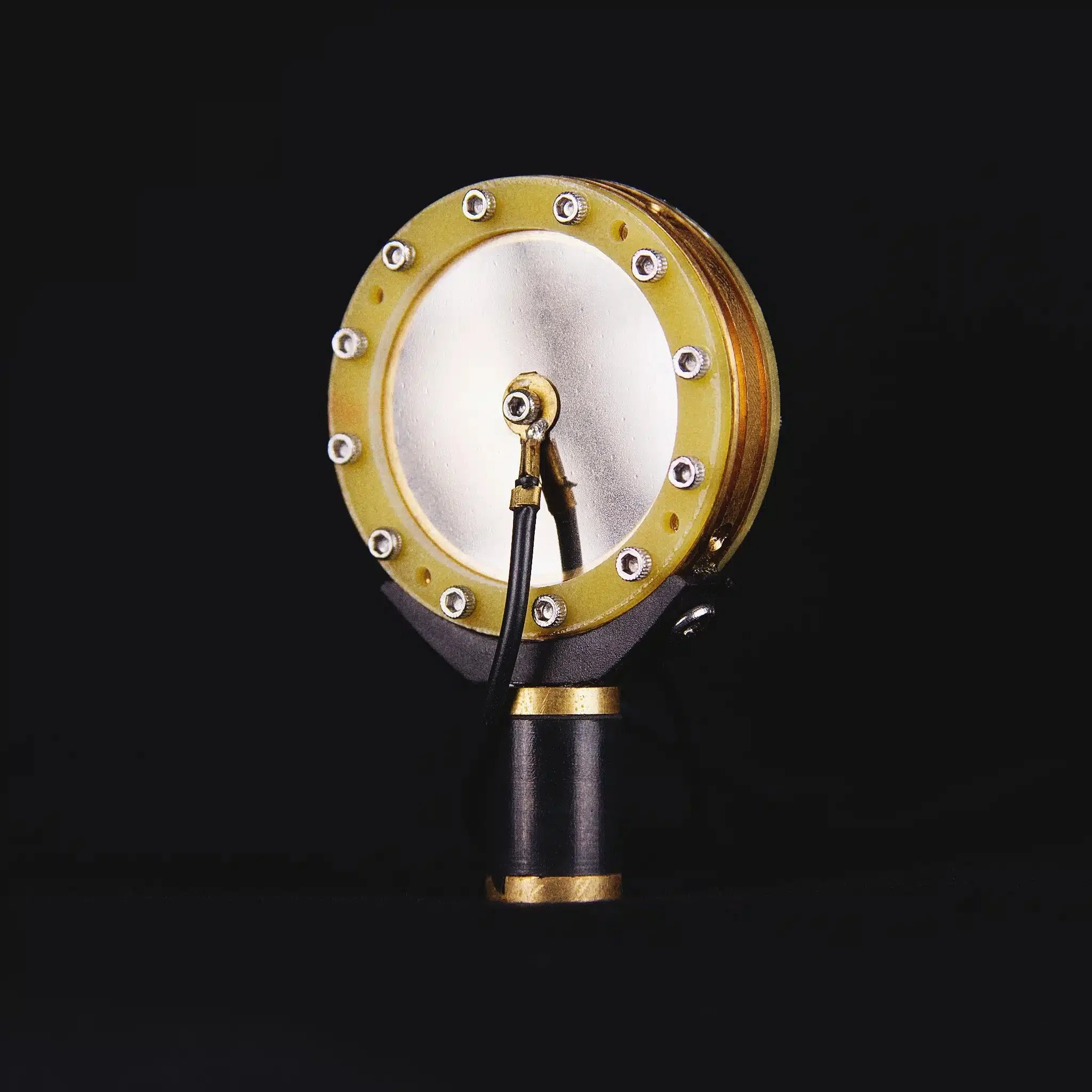

Derek says that the BeesNeez capsule is one of the best K47s on the market - a true historic recreation! The original K47 capsule was the heart of the classic Neumann U47, U48 and M49.

Each K47 capsule is entirely manufactured and personally hand-lapped by the BeesNeez Team with care and attention.

The BeesNeez K47 sounds markedly different from the V13’s standard capsule, featuring the things we know and love about 47-style designs - a thick low end, punchy presence in the 3-5k region, and a smooth, gently rolled off top end that often feels more “record-ready” than than Neumann’s later 67/87 design, while being more forgiving and natural sounding in off-axis situations. These capsules are custom-wired for Vanguard by Ben at BeesNeez with Teflon-insulated, silver-plated stranded 28awg wire.

Also featured in this custom-shop offering is the Cinemag transformer, replacing Vanguard’s standard V13 transformer. Made in the USA in Ventura, California, Cinemags are some of the best transformers currently available, with rich harmonics and that delicious je ne sais quoi that only high-quality audio transformers can provide. With humbucking rejection, low distortion, and superb bandwidth, these transformers take the already-scrumptious V13 gen2 to new levels of delicious sonic flavor.

The Cinemag adds subtle improvements, particularly in the high end and crucial mid-range frequencies for vocals. Says Derek, “Because of the larger transformer core, it can also handle higher SPL sources before saturation, giving the V13 more clean headroom for things like guitar amp and kick drum mic'ing.”

Each of these custom beauties will be assembled, tested, inspected and certified, with love, by Vanguard’s Mic-Guru-in-Chief Derek Bargaehr in Hatfield, Pennsylvania.

Vanguard is only offering ten (10) of these units, so grab one while you can because when they’re gone, they’re gone!

FEATURES

Capsule & Electronics

•     BeesNeez K-47 Capsule

•     Cinemag Transformer

•     Hand-selected European vacuum tube

•     9 selectable polar patterns (selectable at power supply)

•     -10dB pad and low-frequency rolloff toggle switches

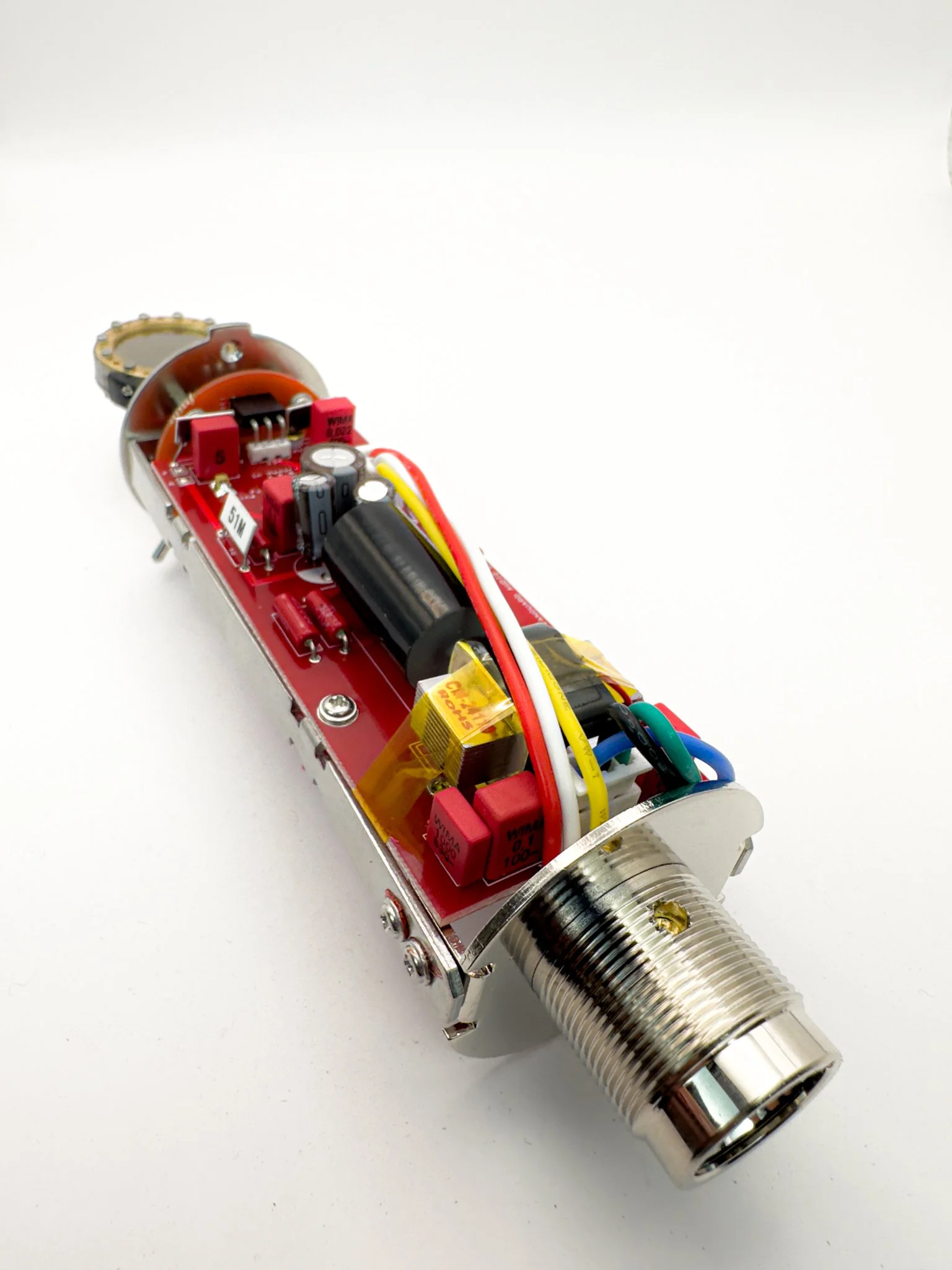

•     Transformer-balanced solid-state circuitry featuring US-made audiophile-grade components

•     Ultra-low-noise JFET design

•     Deep-cycle cryogenic treatment of critical signal & power path components

•     Neutrik® interconnects

Construction

•   Heavy-duty SUS304 stainless steel, aircraft-grade aluminum, and zinc construction

•     Open-weave headbasket for low internal reflections and “open-air” voicing

•     Over-spec componentry

•     Deep-gloss Pinot Noir finish

•     Precision-cast Vanguard badge

•     Final Assembly & 100% Quality Control in Hatfield, Pennsylvania, USA

•     5-Year Warranty

Specs

•     Transducer Type: Condenser

•     Electronics Type: Solid-state, electronically-balanced output

•     Output Impedance: 200Ω

•     Max SPL: appx. 135dB (145dB w/ Pad)

•     Frequency Response: 20Hz-20000Hz

•     Equivalent Noise Level: ≤12dBA (A-weighted)

•     SNR: ≥82dBA (A-weighted)

•     Output Connector: Neutrik® male XLR 3-pin, gold-plated

•     Attenuation/Pad Switch: -10dB/ -20dB (switchable)

•     Finish: Polished nickel trim / High-gloss Pinot Noir

•     Weight (microphone): 0.83 lbs / 0.38 kg

•     Weight (in case): 5.63 lbs / 2.56 kg

•     Dimensions (microphone): 8.2″ long, 2.05″ diameter / 208mm long, 52mm diameter

•     Dimensions (case): 12″L x 11″W x 5.75″H / 305mmL x 280mmW x 146mmH

•     Voltage Requirement: Phantom Power (+48V ideal)

Included Accessories

• VLSM Large Shockmount

• Padded Pinewood Microphone Storage Box

• Aluminum Carrying Case

DOCUMENTATION:

• PRODUCT INFORMATION
